Building Your Own GPU Ready GitHub Actions Runner: A Dockerfile Guide

A guide on why and how to build a custom GitHub Actions Runner that uses GPU.

GitHub Actions is a powerful tool for automating your development workflow. While GitHub provides hosted runners, sometimes you need a custom environment. In this post, we'll walk through creating a Dockerfile to build your own GitHub Actions runner.

Why Build a Custom Runner?

Before we dive into the technical details, let's consider why you might want to create your own runner:

1. Specific software requirements.

2. Enhanced security and control.

3. Cost optimization for high-volume workflows.

4. Access to specialized hardware.

Custom runners give you the flexibility to tailor your CI/CD environment to your exact needs.

Notes

There are a few examples online of Github Runner Dockerfiles, and the goal of this article is to provide added value. I found it hard to find good examples to build a Github Runner that could use a GPU within Kubernetes at the time.

Even though the focus of this article is to make a GPU capable Github Runner, it’s not hard to switch back to a normal Github Runner by changing:

• FROM nvidia/cuda:12.5.1-runtime-ubuntu24.04 to FROM ubuntu:latest

• Remove the RUN block that install the nvidia drivers for Docker.

The Dockerfile: Building Blocks

Let's break down our Dockerfile into manageable sections. I was inspired greatly by this Dockerfile from myoung34/docker-github-actions-runner and therefore use the same environment variables.

You can find our version here.

Base Image and Environment Setup

We start with an Ubuntu base image and set some essential environment variables:

FROM nvidia/cuda:12.5.1-runtime-ubuntu24.04

ENV DEBIAN_FRONTEND=noninteractive
ENV LANG=en_US.UTF-8
ENV LANGUAGE=en_US.UTF-8
ENV LC_ALL=en_US.UTF-8

ENV AGENT_TOOLSDIRECTORY=/opt/hostedtoolcache
ARG GH_RUNNER_VERSION="2.317.0"
ARG TARGETPLATFORM

RUN echo en_US.UTF-8 UTF-8 >> /etc/locale.gen
RUN mkdir -p /opt/hostedtoolcache

Installing Dependencies

This section ensures we have all the necessary tools installed.

Some of these dependencies are necessary for the next steps of this Dockerfile, things like Kubectl, Helm, Docker will need to be installed semi manually and requires to import GPG keys etc.

If you have other needs like other languages that need to be installed natively on your Github Runner, that’s where you should do it.

# Install necessary dependencies
RUN apt-get update && apt-get install -y --no-install-recommends \
    lsb-release software-properties-common build-essential \
    gettext gnupg tar unzip zip zstd \
    apt-transport-https ca-certificates \
    wget curl jq yq rsync \
    zlib1g-dev libcurl4-openssl-dev inetutils-ping dirmngr \
    openssh-client locales dumb-init pass gosu sudo \
    python3-pip python3-setuptools python3 nodejs cmake yarn

Other dependencies

Install Kubectl:

RUN curl -fsSL https://pkgs.k8s.io/core:/stable:/v1.30/deb/Release.key | sudo gpg --dearmor -o /etc/apt/keyrings/kubernetes-apt-keyring.gpg \
    && sudo chmod 644 /etc/apt/keyrings/kubernetes-apt-keyring.gpg \
    && echo 'deb [signed-by=/etc/apt/keyrings/kubernetes-apt-keyring.gpg] https://pkgs.k8s.io/core:/stable:/v1.30/deb/ /' | sudo tee /etc/apt/sources.list.d/kubernetes.list \
    && sudo chmod 644 /etc/apt/sources.list.d/kubernetes.list \
    && sudo apt-get update \
    && sudo apt-get install -y kubectl

Install Helm:

RUN curl https://baltocdn.com/helm/signing.asc | gpg --dearmor | sudo tee /usr/share/keyrings/helm.gpg > /dev/null \
    && sudo apt-get install apt-transport-https --yes \
    && echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/helm.gpg] https://baltocdn.com/helm/stable/debian/ all main" | sudo tee /etc/apt/sources.list.d/helm-stable-debian.list \
    && sudo apt-get update \
    && sudo apt-get install -y helm

Install Docker:

RUN sudo install -m 0755 -d /etc/apt/keyrings \
    && sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc \
    && sudo chmod a+r /etc/apt/keyrings/docker.asc \
    && echo \
    "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu \
    $(. /etc/os-release && echo "$VERSION_CODENAME") stable" | \
    sudo tee /etc/apt/sources.list.d/docker.list > /dev/null \
    && apt-get update \
    && sudo apt-get install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

Install nvidia drivers for Docker:

RUN curl -fsSL https://nvidia.github.io/libnvidia-container/gpgkey | sudo gpg --dearmor -o /usr/share/keyrings/nvidia-container-toolkit-keyring.gpg \
    && curl -s -L https://nvidia.github.io/libnvidia-container/stable/deb/nvidia-container-toolkit.list | \
    sed 's#deb https://#deb [signed-by=/usr/share/keyrings/nvidia-container-toolkit-keyring.gpg] https://#g' | \
    sudo tee /etc/apt/sources.list.d/nvidia-container-toolkit.list \
    && apt-get update \
    && apt-get install -y nvidia-docker2 nvidia-container-toolkit

Install Github CLI:

RUN wget -qO- https://cli.github.com/packages/githubcli-archive-keyring.gpg | sudo tee /etc/apt/keyrings/githubcli-archive-keyring.gpg > /dev/null \
    && sudo chmod go+r /etc/apt/keyrings/githubcli-archive-keyring.gpg \
    && echo "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/githubcli-archive-keyring.gpg] https://cli.github.com/packages stable main" | sudo tee /etc/apt/sources.list.d/github-cli.list > /dev/null \
    && sudo apt update \
    && sudo apt install gh -y

Create a Runner User

Here we create a Group and a User, both called runner. Then we add this user to sudo and docker groups. We also let any user from the sudo group run any command without asking a password.

RUN groupadd -g 121 runner \
    && useradd -mr -d /home/runner -u 1001 -g 121 runner \
    && usermod -aG sudo runner \
    && usermod -aG docker runner \
    && echo '%sudo ALL=(ALL) NOPASSWD: ALL' >> /etc/sudoers

Setup Github Runner Startup

WORKDIR /actions-runner
COPY install_actions.sh /actions-runner

RUN chmod +x /actions-runner/install_actions.sh \
    && /actions-runner/install_actions.sh ${GH_RUNNER_VERSION} ${TARGETPLATFORM} \
    && rm /actions-runner/install_actions.sh \
    && chown runner /_work /actions-runner /opt/hostedtoolcache

COPY token.sh entrypoint.sh app_token.sh /
RUN chmod +x /token.sh /entrypoint.sh /app_token.sh
ENTRYPOINT ["/entrypoint.sh"]
CMD ["./bin/Runner.Listener", "run", "--startuptype", "service"]

Deployment and Usage

With our Dockerfile and startup script ready, deployment is straightforward:

1. Build the Docker image

2. Run the container with necessary environment variables

Example of environment variables:

- name: ACCESS_TOKEN
  value: mytoken
- name: RUNNER_SCOPE
  value: "org"
- name: ORG_NAME
  value: packagemain
- name: RUN_AS_ROOT
  value: "true"
- name: LABELS
  value: runner,github-action,gpu
- name: RUNNER_WORKDIR
  value: /tmp/github-runner
- name: DISABLE_AUTO_UPDATE
  value: "true"

For ACCESS_TOKEN you should use a Github personal access token.

The way the Dockerfile runs and is setup, if we keep the auto update the kubernetes healtcheck might consider it’s having issues and you would be in a perpetual loop try to update / not available / failing.

That’s one of the main improvement here, be able to auto update without Kubernetes thinking the pod is not responding.

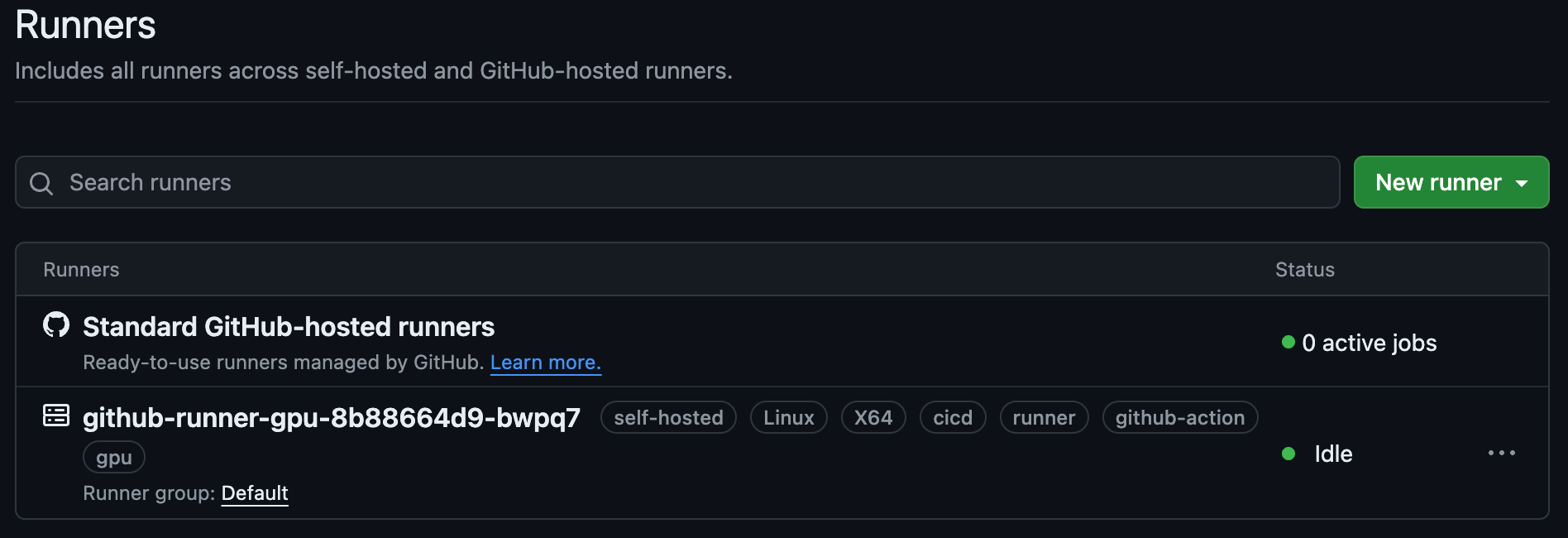

Once your runner is deployed and registered you should be able to see it in Github’s UI in org settings (Actions → Runners):

Conclusion: Empowering Your CI/CD Pipeline

By creating a custom GitHub Actions runner, you're taking control of your development pipeline. This Dockerfile provides a solid foundation that you can further customize to meet your specific needs.

Remember, the key to a successful custom runner is balancing flexibility with maintainability.

You can find all configuration in our GitHub Repo.

Happy building!
