Software Architecture Diagrams with C4 Model

Diagrams should be effortless to create and update, ensuring everyone has access to the latest information.

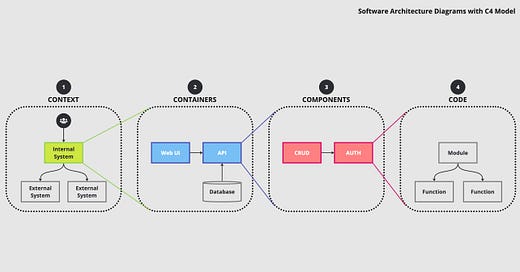

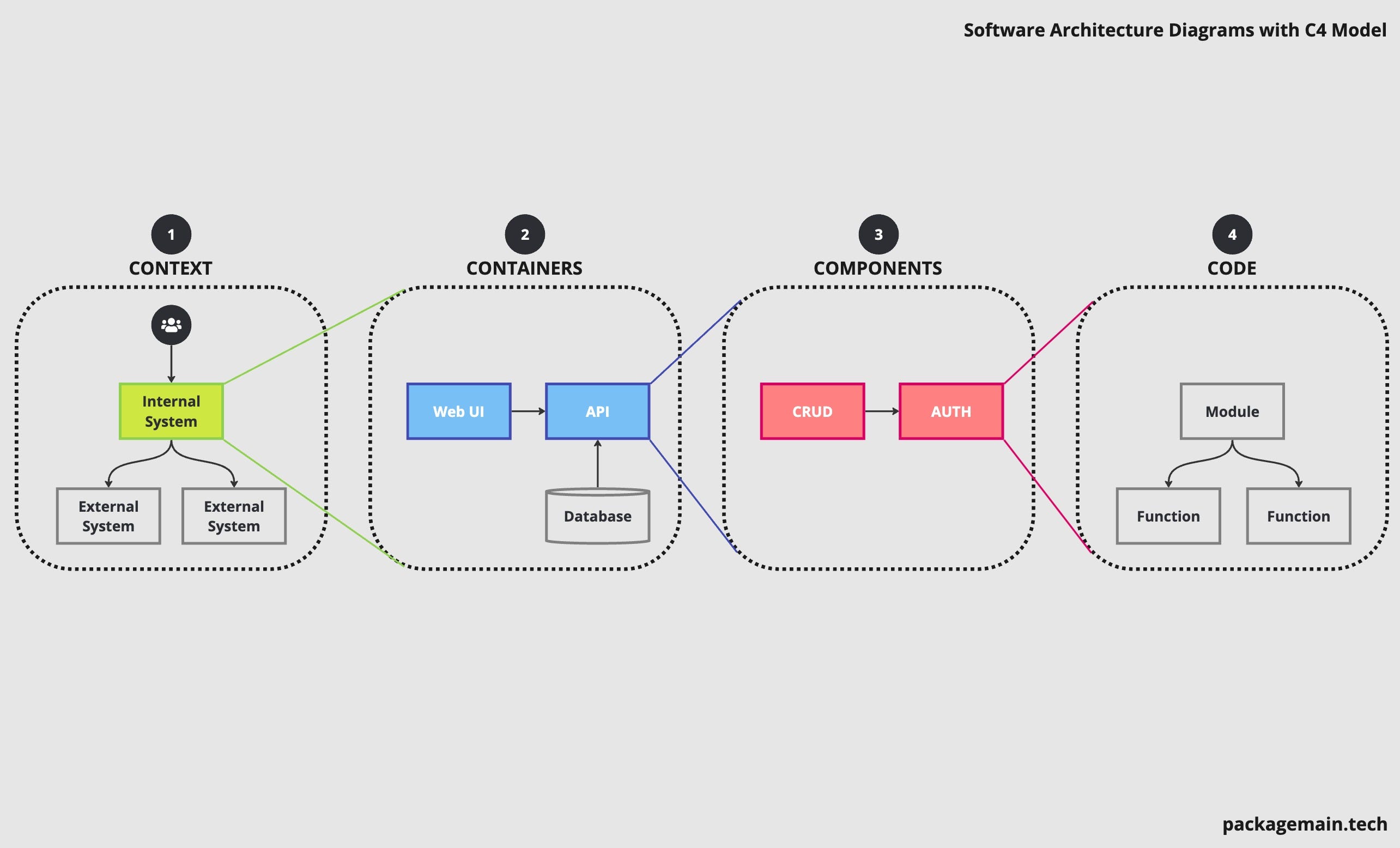

4 Layers of C4 Model: Context, Containers, Components, and Code

A picture is worth a thousand words

We've all experienced joining a complex project where deciphering the codebase feels like reading a whole novel. Engineers are code wizards, but even the best get lost in sprawling code. The challenge is that architecture diagrams (if they even exist) are often outdated relics from a bygone era.

This is why creating and maintaining clear diagrams should be effortless. Up-to-date visuals ensure everyone stays on the same page, eliminating confusion and wasted time.

C4 Model

The C4 model was created as a way to help software development teams describe and communicate software architecture.

C4 stands for “Context, Containers, Components, and Code”. Those are four levels that should be enough to describe a complex system.

The best way to explain the concept is to think about how we use Google Maps. When we are exploring an area in Google Maps, we will often start zoomed out to help us get context. Once we find the rough area we are interested in we can zoom in to get a little more detail.

Level 1: Context

This level is the most zoomed out, it is a bird’s eye view of the system in the context of the world. The diagram concentrates on actors and systems.

For the examples below we will use a simple Task Management Software System to demonstrate all these 4 levels.

Context Level

This diagram portrays the Task Management Software System's interactions with external systems and the different user groups that utilize it.

Level 2: Containers

The containers level is a more detailed view of your system (don’t confuse C4 containers with the Docker containers).

It reveals how various functional units like applications and databases work together and distribute responsibilities. Additionally, this diagram highlights the key technologies employed and showcases the communication flow between these containers. It presents a simplified, technology-centric view of the system's core components and their interactions.

If you have Microservice architecture then each Microservice would be a container.

Examples of containers are:

• Single page application

• Web server

• Serverless function

• Database

• API

• Message buses

• etc.

Containers Level

This level delves into the internal composition of the Task Management Software System. It showcases the various containers (e.g., user interface, data storage) that make up the system and how they interact.

Level 3: Components

The next level of zoom is components. This shows the major structural building blocks of your application, it is often a conceptual view of your application. The term component is loose here. It could represent a controller, or service containing business logic.

Components Level

This diagram focuses on the internal structure of the API container within the Task Management Software System. It reveals that the API container houses crucial functionalities like CRUD operations (Create, Read, Update, Delete) for data manipulation and user authentication mechanisms.

Level 4: Code

The deepest level of zoom is the code diagram. Although this diagram exists, it is often not used as the code paints a very similar picture.

Supplementary diagrams

Besides the 4 diagrams above there are a few more worth mentioning:

• Deployment diagram

• Dynamic diagram: to describe the process or a flow

Login Flow

Diagrams as Code

The power of C4 comes with a diagram-as-code approach, this means treating your diagrams just like your codebase:

• Version control: Store them in a source control system (like Git) for easy tracking and collaboration.

• Collaboration: Work together on diagrams using pull requests, similar to code reviews.

• Automation: Integrate them into your build pipelines for automatic rendering with your preferred tools.

There are few tools to help with modeling and diagramming, however the most popular nowadays is Structurizr with their custom DSL (Domain Specific Language).

All you need is to get familiar with the DSL syntax, which is pretty simple. As long as you get used to it you will be able to create or update diagrams in no time.

Below you can see the shortened DSL of our Task Management Software System.

workspace {
    model {
        # Actors
        customer = person "Customer" "" "person"
        admin = person "Admin User" "" "person"

        # External systems
        emailSystem = softwareSystem "Email System" "Mailgun" "external"
        calendarSystem = softwareSystem "Calendar System" "Calendly" "external"

        # Task Management System
        taskManagementSystem  = softwareSystem "Task Management System"{
            webContainer = container "User Web UI" "" "" "frontend"
            adminContainer = container "Admin Web UI" "" "" "frontend"
            dbContainer = container "Database" "PostgreSQL" "" "database"
            apiContainer = container "API" "Go" {
                authComp = component "Authentication"
                crudComp = component "CRUD"
            }
        }

        # Relationships (Actors & Systems)
        customer -> webContainer "Manages tasks"
        admin -> adminContainer "Manages users"
        apiContainer -> emailSystem "Sends emails"
        apiContainer -> calendarSystem "Creates tasks in Calendar"

        # Relationships (Containers)
        webContainer -> apiContainer "Uses"
        adminContainer -> apiContainer "Uses"
        apiContainer -> dbContainer "Persists data"

        # Relationships (Components & Containers)
        crudComp -> dbContainer "Reads from and writes to"
        webContainer -> authComp "Authenticates using"
        adminContainer -> authComp "Authenticates using"
    }
}

Automate rendering in your CI

Since we can host our models on Github, it is very easy to automate the pipeline for rendering the diagrams in the tools of your choice.

In our case Structurizr has a Github Action that allows you to run structurizr-cli, a command line utility for Structurizr that lets you create software architecture models based upon the C4 model using a textual domain specific language (DSL).

Our sample repository contains a workflow that simply generates a static page and publishes it to Github Pages.

name: Deploy static content to Github Pages

on:
  push:
    branches: ["main"]

permissions:
  contents: read
  pages: write
  id-token: write

concurrency:
  group: "pages"
  cancel-in-progress: false

jobs:
  build:
    runs-on: ubuntu-latest
    container:
      image: ghcr.io/avisi-cloud/structurizr-site-generatr
      options: --user root
    steps:
      - name: Checkout
        uses: actions/checkout@v3
      - name: Create site
        run: |
          /opt/structurizr-site-generatr/bin/structurizr-site-generatr generate-site -w diagram.dsl
      - uses: actions/upload-artifact@v3
        with:
          name: website
          path: build/site
  deploy:
    needs: build
    environment:
      name: github-pages
      url: ${{ steps.deployment.outputs.page_url }}
    runs-on: ubuntu-latest
    steps:
      - uses: actions/download-artifact@v3
        with:
          name: website
          path: build/site
      - name: Setup Pages
        uses: actions/configure-pages@v3
      - name: Upload artifact
        uses: actions/upload-pages-artifact@v1
        with:
          path: "build/site"
      - name: Deploy to GitHub Pages
        id: deployment
        uses: actions/deploy-pages@v2
